Name：braided aluminum straps
View：
braided aluminum straps Description：

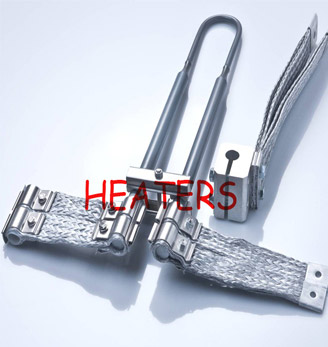

Torch Furnace MoSi2 Element Accessories inculduing: support clamps braided aluminum straps power buss bars passage mounting bricks.Torch Furnace MoSi2 Element Accessories
Torch Furnace MoSi2 Element Accessories inculduing:
support clamps
braided aluminum straps
power buss bars
passage mounting bricks
The wire connection clamp connecting MoSi2 element is made of aluminum woven wire or multilayer aluminum foil. The steel plate outside it only acts as a clamp and isn’t used
for electric conduction. ForΦ6/12 element, single rowing wire is used ,and forΦ9/18 element ,double-rowing wire is used .The end of the lead wire should be a little larger
than linear distance between the element and bus .
When the element is installed, the thread fixing the wire clip shouldn’t be screwed too much at one time, it can be tightened when thee element rises to high temperature, as
the element has some plastic and isn’t easily broken. The temperature of the wire clip generally shouldn’t be higher than 200℃. Therefore, the contact voltage between the
clip wire and element should bee lowered to 0.1V. In order to avoid that the radiation heat is conducted to the clip, the distance between the lower end of the clip and upper
surface of the through brick should not less then 500mm. Generally forΦ6/12 element ,170A should not bee used for a long time and forΦ9/18 element ,300A shouldn’t be used.
